Introducción

Vamos a construir un cortafuegos en la maquina dulcinea de nuestro escenario en openstack que nos permita controlar el tráfico de nuestra red. El cortafuegos que vamos a construir debe funcionar tras un reinicio.

En este caso la maquina dulcinea cuenta con 3 interfaces de red:

  • eth0: interfaz al exterior
  • eth1: interfaz de la red interna donde estan alojadas las maquinas freston(servidor ldap y de correos) y sancho (servidor base de datos y de copias de seguridad)
  • eth2: interfaz a red dmz donde esta la maquina quijote (servidor web)

Política por defecto

La política por defecto que vamos a configurar en nuestro cortafuegos será de tipo DROP.

Configuraciones de reglas NAT

  1. Configura de manera adecuada las reglas NAT para que todas las máquinas de nuestra red tenga acceso al exterior.
iptables -t nat -A POSTROUTING -s 10.0.1.0/24 -o eth0 -j MASQUERADE
iptables -t nat -A POSTROUTING -s 10.0.2.0/24 -o eth0 -j MASQUERADE
  1. Configura de manera adecuada todas las reglas NAT necesarias para que los servicios expuestos al exterior sean accesibles.
iptables -t nat -A PREROUTING -i eth0 -p udp --dport 53 -j DNAT --to 10.0.1.3
iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 53 -j DNAT --to 10.0.1.3
iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 80 -j DNAT --to 10.0.2.5
iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 443 -j DNAT --to 10.0.2.5
iptables -t nat -A PREROUTING -i eth0 -p tcp --dport 25 -j DNAT --to 10.0.1.3

Reglas iptables

Para cada configuración, hay que mostrar las reglas que se han configurado y una prueba de funcionamiento de la misma:

Reglas ping

  1. Todas las máquinas de las dos redes pueden hacer ping entre ellas.
  • Dulcinea → LAN
	iptables -A OUTPUT -o eth1 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
	iptables -A INPUT -i eth1 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Dulcinea → DMZ
	iptables -A OUTPUT -o eth2 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
	iptables -A INPUT -i eth2 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Prueba de funcionamiento:
root@dulcinea:/home/debian# ping sancho
PING sancho.sergio.gonzalonazareno.org (10.0.1.8) 56(84) bytes of data.
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=1 ttl=64 time=1.31 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=2 ttl=64 time=0.604 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=3 ttl=64 time=0.677 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=4 ttl=64 time=0.783 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=5 ttl=64 time=0.633 ms
^C
--- sancho.sergio.gonzalonazareno.org ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 40ms
rtt min/avg/max/mdev = 0.604/0.800/1.306/0.261 ms
root@dulcinea:/home/debian# ping quijote
PING quijote.sergio.gonzalonazareno.org (10.0.2.5) 56(84) bytes of data.
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=1 ttl=64 time=1.17 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=2 ttl=64 time=0.603 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=3 ttl=64 time=0.530 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=4 ttl=64 time=0.453 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=5 ttl=64 time=0.562 ms
^C
--- quijote.sergio.gonzalonazareno.org ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 61ms
rtt min/avg/max/mdev = 0.453/0.662/1.165/0.257 ms
  • DMZ → LAN
	iptables -A FORWARD -i eth2 -o eth1 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
	iptables -A FORWARD -i eth1 -o eth2 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Prueba de funcionamiento:
	[centos@quijote ~]$ ping sancho
PING sancho.sergio.gonzalonazareno.org (10.0.1.8) 56(84) bytes of data.
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=1 ttl=63 time=1.83 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=2 ttl=63 time=1.38 ms
64 bytes from sancho.sergio.gonzalonazareno.org (10.0.1.8): icmp_seq=3 ttl=63 time=1.68 ms
^C
--- sancho.sergio.gonzalonazareno.org ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 5ms
rtt min/avg/max/mdev = 1.376/1.626/1.827/0.190 ms
  • LAN → DMZ
	iptables -A FORWARD -i eth1 -o eth2 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
	iptables -A FORWARD -i eth2 -o eth1 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Prueba de funcionaiento:
	debian@freston:~$ ping quijote
PING quijote.sergio.gonzalonazareno.org (10.0.2.5) 56(84) bytes of data.
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=1 ttl=63 time=1.86 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=2 ttl=63 time=1.26 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=3 ttl=63 time=1.18 ms
64 bytes from quijote.sergio.gonzalonazareno.org (10.0.2.5): icmp_seq=4 ttl=63 time=1.37 ms
^C
--- quijote.sergio.gonzalonazareno.org ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 8ms
rtt min/avg/max/mdev = 1.183/1.416/1.859/0.265 ms
  1. Todas las máquinas pueden hacer ping a una máquina del exterior.
  • LAN → EXT
	iptables -A FORWARD -i eth1 -o eth0 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
	iptables -A FORWARD -i eth0 -o eth1 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Prueba de funcionamiento:
	debian@freston:~$ ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=111 time=44.6 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=111 time=42.9 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=111 time=43.1 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=111 time=44.2 ms
^C
--- 8.8.8.8 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 8ms
rtt min/avg/max/mdev = 42.922/43.716/44.595/0.715 ms
  • DMZ → EXT
iptables -A FORWARD -i eth2 -o eth0 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
iptables -A FORWARD -i eth0 -o eth2 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
  • Prueba de funcionamiento:
	[centos@quijote ~]$ ping 8.8.8.8
PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
64 bytes from 8.8.8.8: icmp_seq=1 ttl=111 time=63.10 ms
64 bytes from 8.8.8.8: icmp_seq=2 ttl=111 time=43.0 ms
64 bytes from 8.8.8.8: icmp_seq=3 ttl=111 time=142 ms
64 bytes from 8.8.8.8: icmp_seq=4 ttl=111 time=42.9 ms
^C
--- 8.8.8.8 ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 7ms
rtt min/avg/max/mdev = 42.864/73.079/142.492/40.984 ms
  1. Desde el exterior se puede hacer ping a dulcinea.
iptables -A OUTPUT -o eth0 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
iptables -A INPUT -i eth0 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
  • Prueba de funcionamiento:
sergioib@debian-sergio:~$ ping 172.22.200.151
PING 172.22.200.151 (172.22.200.151) 56(84) bytes of data.
64 bytes from 172.22.200.151: icmp_seq=1 ttl=61 time=180 ms
64 bytes from 172.22.200.151: icmp_seq=2 ttl=61 time=102 ms
64 bytes from 172.22.200.151: icmp_seq=3 ttl=61 time=126 ms
64 bytes from 172.22.200.151: icmp_seq=4 ttl=61 time=116 ms
64 bytes from 172.22.200.151: icmp_seq=5 ttl=61 time=97.8 ms
64 bytes from 172.22.200.151: icmp_seq=6 ttl=61 time=94.3 ms
  1. A dulcinea se le puede hacer ping desde la DMZ, pero desde la LAN se le debe rechazar la conexión (REJECT).
  • DMZ → Dulcinea
iptables -A OUTPUT -o eth2 -p icmp -m icmp --icmp-type echo-reply -j ACCEPT
iptables -A INPUT -i eth2 -p icmp -m icmp --icmp-type echo-request -j ACCEPT
  • Prueba de funcionamiento:
[centos@quijote ~]$ ping dulcinea
PING dulcinea.sergio.gonzalonazareno.org (10.0.2.3) 56(84) bytes of data.
64 bytes from dulcinea.sergio.gonzalonazareno.org (10.0.2.3): icmp_seq=1 ttl=64 time=0.608 ms
64 bytes from dulcinea.sergio.gonzalonazareno.org (10.0.2.3): icmp_seq=2 ttl=64 time=0.721 ms
64 bytes from dulcinea.sergio.gonzalonazareno.org (10.0.2.3): icmp_seq=3 ttl=64 time=0.676 ms
64 bytes from dulcinea.sergio.gonzalonazareno.org (10.0.2.3): icmp_seq=4 ttl=64 time=0.730 ms
^C
--- dulcinea.sergio.gonzalonazareno.org ping statistics ---
4 packets transmitted, 4 received, 0% packet loss, time 90ms
rtt min/avg/max/mdev = 0.608/0.683/0.730/0.057 ms
  • LAN → Dulcinea
iptables -A INPUT -i eth1 -p icmp -m icmp --icmp-type echo-request -j REJECT --reject-with icmp-port-unreachable
iptables -A OUTPUT -o eth1 -p icmp -j ACCEPT
  • Prueba de funcionamiento:
debian@freston:~$ ping 10.0.1.5
PING 10.0.1.5 (10.0.1.5) 56(84) bytes of data.
From 10.0.1.5 icmp_seq=1 Destination Port Unreachable
From 10.0.1.5 icmp_seq=2 Destination Port Unreachable
From 10.0.1.5 icmp_seq=3 Destination Port Unreachable
^C
--- 10.0.1.5 ping statistics ---
3 packets transmitted, 0 received, +3 errors, 100% packet loss, time 4ms

Reglas ssh

  1. Podemos acceder por ssh a todas las máquinas.
  • DMZ → LAN
	iptables -A FORWARD -i eth2 -o eth1 -p tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth1 -o eth2 -p tcp --sport 22 -m state --state ESTABLISHED -j ACCEPT
  • LAN → DMZ
	iptables -A FORWARD -i eth1 -o eth2 -p tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth2 -o eth1 -p tcp --sport 22 -m state --state ESTABLISHED -j ACCEPT
  • Dulcinea → LAN
	iptables -A OUTPUT -o eth1 -p tcp -m tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -i eth1 -p tcp -m tcp --sport 22 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
root@dulcinea:/home/debian# ssh -i .ssh/2asir.pem ubuntu@sancho
Welcome to Ubuntu 20.04.1 LTS (GNU/Linux 5.4.0-54-generic x86_64)

 * Documentation:  https://help.ubuntu.com
 * Management:     https://landscape.canonical.com
 * Support:        https://ubuntu.com/advantage

  System information as of Fri Jan 29 10:13:01 CET 2021

  System load:  0.16              Processes:             109
  Usage of /:   31.8% of 9.52GB   Users logged in:       0
  Memory usage: 65%               IPv4 address for ens3: 10.0.1.8
  Swap usage:   0%

 * Introducing self-healing high availability clusters in MicroK8s.
   Simple, hardened, Kubernetes for production, from RaspberryPi to DC.

     https://microk8s.io/high-availability

32 updates can be installed immediately.
0 of these updates are security updates.
To see these additional updates run: apt list --upgradable


*** System restart required ***
Last login: Fri Jan 29 08:29:29 2021 from 10.0.1.5
ubuntu@sancho:~$
  • Dulcinea → DMZ
	iptables -A OUTPUT -o eth2 -p tcp -m tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -i eth2 -p tcp -m tcp --sport 22 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
root@dulcinea:/home/debian# ssh -i .ssh/2asir.pem centos@quijote
Last login: Tue Jan 26 14:20:42 2021 from 10.0.2.3
[centos@quijote ~]$
  1. Todas las máquinas pueden hacer ssh a máquinas del exterior.
  • LAN → EXT
	iptables -A FORWARD -i eth1 -o eth0 -p tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth0 -o eth1 -p tcp --dport 22 -m state --state ESTABLISHED -j ACCEPT
  • DMZ → EXT
	iptables -A FORWARD -i eth2 -o eth0 -p tcp --dport 22 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth0 -o eth2 -p tcp --dport 22 -m state --state ESTABLISHED -j ACCEPT

Reglas DNS

  1. El único dns que pueden usar los equipos de las dos redes es freston, no pueden utilizar un DNS externo.
  • Freston → EXT
	iptables -A FORWARD -s 10.0.1.3 -d 0.0.0.0/0 -p udp --dport 53 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -s 0.0.0.0/0 -d 10.0.1.3 -p udp --sport 53 -m state --state ESTABLISHED -j ACCEPT
  • DMZ → Freston
	iptables -A FORWARD -s 10.0.2.0/24 -d 10.0.1.3 -p udp --dport 53 -m state --state NEW,ESTABLISHED -j ACCEPT
  	iptables -A FORWARD -s 10.0.1.3 -d 10.0.2.0/24 -p udp --sport 53 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
[centos@quijote ~]$ dig dulcinea.sergio.gonzalonazareno.org

; <<>> DiG 9.11.20-RedHat-9.11.20-5.el8 <<>> dulcinea.sergio.gonzalonazareno.org
;; global options: +cmd
;; Got answer:
;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 8104
;; flags: qr aa rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 1, ADDITIONAL: 2

;; OPT PSEUDOSECTION:
; EDNS: version: 0, flags:; udp: 4096
; COOKIE: 223207db578b4d4d2daf835f6013ecc74e18914c1562b393 (good)
;; QUESTION SECTION:
;dulcinea.sergio.gonzalonazareno.org. IN	A

;; ANSWER SECTION:
dulcinea.sergio.gonzalonazareno.org. 604800 IN A 10.0.2.3

;; AUTHORITY SECTION:
sergio.gonzalonazareno.org. 604800 IN	NS	freston.sergio.gonzalonazareno.org.

;; ADDITIONAL SECTION:
freston.sergio.gonzalonazareno.org. 604800 IN A	10.0.1.3

;; Query time: 1 msec
;; SERVER: 10.0.1.3#53(10.0.1.3)
;; WHEN: Fri Jan 29 12:08:55 CET 2021
;; MSG SIZE  rcvd: 146
  1. Dulcinea puede usar cualquier servidor DNS.
  • Dulcinea → Freston
	iptables -A OUTPUT -d 10.0.1.3 -p udp --sport 53 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -s 10.0.1.3 -d 10.0.1.5 -p udp --sport 53 -m state --state ESTABLISHED -j ACCEPT
  • Dulcinea → Cualquier red
	iptables -A OUTPUT -o eth0 -p udp --dport 53 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -i eth0 -p udp --sport 53 -m state --state ESTABLISHED -j ACCEPT
  1. Tenemos que permitir consultas dns desde el exterior a freston, para que, por ejemplo, papion-dns pueda preguntar.
	iptables -A FORWARD -i eth0 -o eth1 -s 0.0.0.0/0 -d 10.0.1.3 -p udp --dport 53 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth1 -o eth0 -s 10.0.1.3 -p udp --sport 53 -m state --state ESTABLISHED -j ACCEPT

Reglas Base de datos

  1. A la base de datos de sancho sólo pueden acceder las máquinas de la DMZ.
	iptables -A FORWARD -i eth2 -o eth1 -p tcp --dport 3306 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth1 -o eth2 -p tcp --sport 3306 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
[centos@quijote ~]$ mysql --host=sancho --protocol=tcp --port=3306 mysql -p
Enter password:
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 228
Server version: 5.5.5-10.3.25-MariaDB-0ubuntu0.20.04.1 Ubuntu 20.04

Copyright (c) 2000, 2020, Oracle and/or its affiliates. All rights reserved.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>

Reglas Web

  1. Las páginas web de quijote (80, 443) pueden ser accedidas desde todas las máquinas de nuestra red y desde el exterior.
	iptables -t nat -A PREROUTING -i eth0 -p tcp -m multiport --dports 80,443 -j DNAT --to 10.0.2.3
  • DMZ ↔ EXT
	iptables -A FORWARD -i eth2 -o eth0 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth0 -o eth2 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT

prueba web externa

  • LAN ↔ EXT
	iptables -A FORWARD -i eth1 -o eth0 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth0 -o eth1 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT
  • Dulcinea → EXT
	iptables -A OUTPUT -o eth0 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -i eth0 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT
  • LAN ↔ Quijote
	iptables -A FORWARD -i eth1 -o eth2 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth2 -o eth1 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT
  • Quijote ↔ EXT
	iptables -A FORWARD -i eth0 -o eth2 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth2 -o eth0 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT
  • Dulcinea → Quijote
	iptables -A OUTPUT -o eth2 -p tcp -m multiport --dports 80,443 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A INPUT -i eth2 -p tcp -m multiport --sports 80,443 -m state --state ESTABLISHED -j ACCEPT

Más servicios

  1. Configura de manera adecuada el cortafuegos, para otros servicios que tengas instalado en tu red (ldap, correo, …)

envios desde dulcinea

iptables -A OUTPUT -o eth1 -p tcp --dport 25 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A INPUT -i eth1 -p tcp --sport 25 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
root@dulcinea:/home/debian# telnet 10.0.1.3 25
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
220 freston.sergio.gonzalonazareno.org ESMTP Postfix (Debian/GNU)
quit
Connection closed by foreign host.

envios desde red interna

iptables -A FORWARD -i eth0 -o eth1 -p tcp --dport 25 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth1 -o eth0 -p tcp --sport 25 -m state --state ESTABLISHED -j ACCEPT

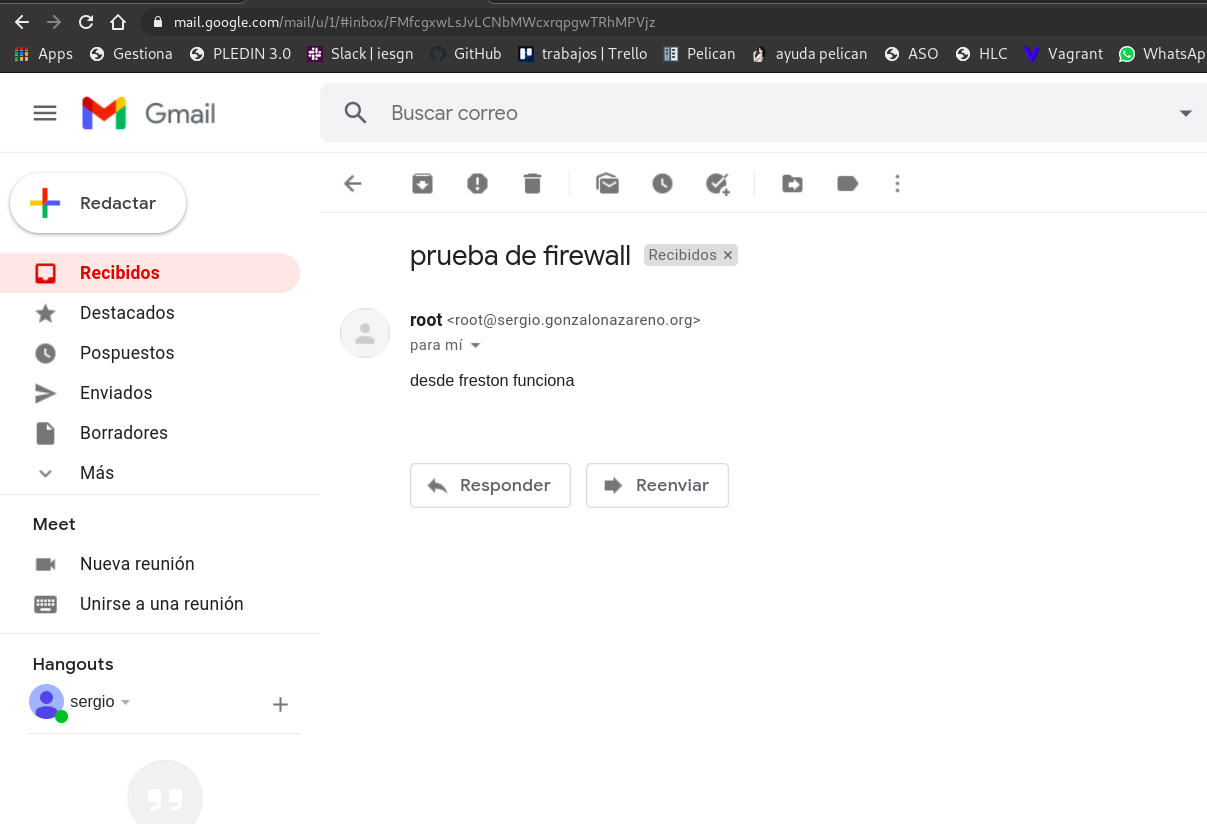

prueba de correo freston

envios desde dmz

iptables -A FORWARD -i eth2 -o eth1 -p tcp --dport 25 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth1 -o eth2 -p tcp --sport 25 -m state --state ESTABLISHED -j ACCEPT

prueba de funcionamiento:

[centos@quijote ~]$ telnet 10.0.1.3 25
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
220 freston.sergio.gonzalonazareno.org ESMTP Postfix (Debian/GNU)
quit
221 2.0.0 Bye
Connection closed by foreign host.
  • DMZ → LAN
iptables -A FORWARD -i eth2 -o eth1 -p tcp -m multiport --dports 389,636 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth1 -o eth2 -p tcp -m multiport --sports 389,636 -m state --state ESTABLISHED -j ACCEPT

prueba de funcionamiento

[centos@quijote ~]$ telnet 10.0.1.3 636
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
quit
Connection closed by foreign host.
[centos@quijote ~]$ telnet 10.0.1.3 389
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
  • Dulcinea → LAN
iptables -A OUTPUT -o eth1 -p tcp -m multiport --dports 389,636 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A INPUT -i eth1 -p tcp -m multiport --sports 389,636 -m state --state ESTABLISHED -j ACCEPT

prueba de funcionamiento

root@dulcinea:/home/debian# telnet 10.0.1.3 636
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
^CConnection closed by foreign host.
root@dulcinea:/home/debian# telnet 10.0.1.3 389
Trying 10.0.1.3...
Connected to 10.0.1.3.
Escape character is '^]'.
^Cquit

Reglas Bacula

  • LAN (Sancho) ↔ DMZ
	iptables -A FORWARD -i eth2 -o eth1 -p tcp --dport 9101:9103 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth1 -o eth2 -p tcp --sport 9101:9103 -m state --state ESTABLISHED -j ACCEPT

	iptables -A FORWARD -i eth1 -o eth2 -p tcp --dport 9101:9103 -m state --state NEW,ESTABLISHED -j ACCEPT
	iptables -A FORWARD -i eth2 -o eth1 -p tcp --sport 9101:9103 -m state --state ESTABLISHED -j ACCEPT
  • Prueba de funcionamiento:
ubuntu@sancho:~$ sudo bconsole
Connecting to Director 10.0.1.8:9101
1000 OK: 103 sancho-dir Version: 9.4.2 (04 February 2019)
Enter a period to cancel a command.
*status
Status available for:
     1: Director
     2: Storage
     3: Client
     4: Scheduled
     5: Network
     6: All
Select daemon type for status (1-6): 3
The defined Client resources are:
     1: sancho-fd
     2: quijote-fd
     3: freston-fd
     4: dulcinea-fd
Select Client (File daemon) resource (1-4): 2
Connecting to Client quijote-fd at 10.0.2.5:9102

quijote-fd Version: 9.0.6 (20 November 2017) x86_64-redhat-linux-gnu redhat (Core)
Daemon started 26-Jan-21 14:16. Jobs: run=3 running=0.
 Heap: heap=4,096 smbytes=21,068 max_bytes=989,931 bufs=63 max_bufs=262
 Sizes: boffset_t=8 size_t=8 debug=0 trace=0 mode=0,0 bwlimit=0kB/s

Running Jobs:
Director connected at: 29-Jan-21 18:38
No Jobs running.
====

Terminated Jobs:
 JobId  Level      Files    Bytes   Status   Finished        Name
===================================================================
    11  Full      32,049    192.0 M  OK       27-Jan-21 00:00 Quijote
    15  Incr          28    843.3 K  OK       27-Jan-21 23:59 Quijote
    19  Incr          28    849.8 K  OK       28-Jan-21 23:59 Quijote
====
You have messages.
  • LAN (Sancho) ↔ Dulcinea
	iptables -A OUTPUT -d 10.0.1.8 -p tcp -m multiport --dports 9101:9103 -j ACCEPT
	iptables -A INPUT -s 10.0.1.8 -p tcp -m multiport --sports 9101:9103 -j ACCEPT
	iptables -A OUTPUT -d 10.0.1.8 -p tcp -m multiport --sports 9101:9103 -j ACCEPT
	iptables -A INPUT -s 10.0.1.8 -p tcp -m multiport --dports 9101:9103 -j ACCEPT
  • Prueba de funcionamiento:
*status
Status available for:
     1: Director
     2: Storage
     3: Client
     4: Scheduled
     5: Network
     6: All
Select daemon type for status (1-6): 3
The defined Client resources are:
     1: sancho-fd
     2: quijote-fd
     3: freston-fd
     4: dulcinea-fd
Select Client (File daemon) resource (1-4): 4
Connecting to Client dulcinea-fd at 10.0.1.5:9102

dulcinea-fd Version: 9.4.2 (04 February 2019)  x86_64-pc-linux-gnu debian 10.5
Daemon started 29-Jan-21 09:21. Jobs: run=0 running=0.
 Heap: heap=114,688 smbytes=23,206 max_bytes=23,223 bufs=73 max_bufs=73
 Sizes: boffset_t=8 size_t=8 debug=0 trace=0 mode=0,0 bwlimit=0kB/s
 Plugin: bpipe-fd.so

Running Jobs:
Director connected at: 29-Jan-21 18:43
No Jobs running.
====

Terminated Jobs:
 JobId  Level    Files      Bytes   Status   Finished        Name
===================================================================
     8  Full      2,878    22.95 M  OK       25-Jan-21 23:59 Dulcinea
     9  Incr         45    709.9 K  OK       26-Jan-21 10:13 Dulcinea
    13  Incr         11    60.87 K  OK       26-Jan-21 23:59 Dulcinea
    17  Incr         45    736.3 K  OK       27-Jan-21 23:59 Dulcinea
    21  Incr         45    752.3 K  OK       28-Jan-21 23:59 Dulcinea
  • LAN → EXT
iptables -A FORWARD -i eth0 -o eth1 -p tcp --dport 9101:9103 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth1 -o eth0 -p tcp --sport 9101:9103 -m state --state ESTABLISHED -j ACCEPT

iptables -A FORWARD -i eth1 -o eth0 -p tcp --dport 9101:9103 -m state --state NEW,ESTABLISHED -j ACCEPT
iptables -A FORWARD -i eth0 -o eth1 -p tcp --sport 9101:9103 -m state --state ESTABLISHED -j ACCEPT

Estas ultimas reglas no serian necesarias, son para el caso de hacer copias de seguridad de equipos externos como pueden ser la maquina real o el servidor virtual OVH.

Categories:

Updated:

Comments

You May Also Enjoy

Introducción a Postman (parte 2)

7 minute read

Aprende a automatizar pruebas, documentar servicios y usar Postman desde la línea de comandos. Domina las funciones avanzadas de Postman para entornos profes...
